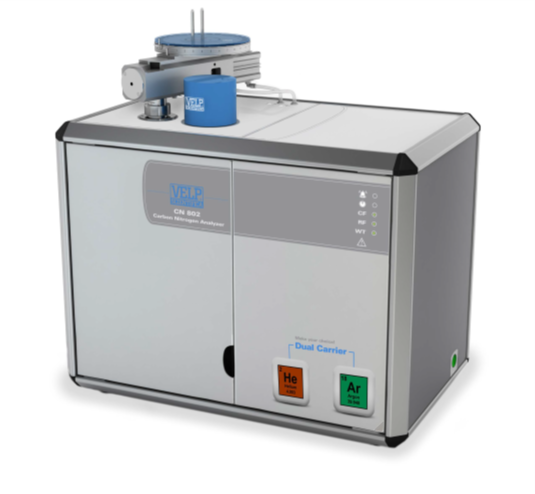

CN 802

VELP CN 802 – Designed to work 24/7

Designed to work 24/7, 365 days a year, the CN 802 allows you to load different matrix of solid, semi-solid and liquid samples at the same time. The analyser also provides carbon detection from ppm – 150 mgC, the lowest Nitrogen LOD in the market of 0.001 mgN with Helium and the RSD lower than 0.5% (EDTA) to assure you high precision results and superb reproducibility.

The CN 802 is easy to install and exceptionally compact saving your valuable lab bench space.

Although the autosampler is supplied with a disc of 30 positions this can be expanded to have capacity for up to 117 samples.

Key Features

• The selective Non-Dispersive Infrared NDIR detector is maintenance-free and reads only Carbon content
• The LoGasTM TCD works with no reference gas ensuring accuracy and precision
• Very low oxygen consumption
• Has a maintenance-free DriStepTM water trap (a physical trap that removes 99% of water, therefore reducing the cost of chemicals)
• After-sale support package utilising the ERMES cloud platform and a1 envirosciences service contracts.

Parameters / Elements

• Total Carbon – TC
• Total Nitrogen – TN
• C/N Ratio

Measuring method

Cabon/Nitrogen determination according to combustion method

Industries

• Agriculture
• Environmental
• Food & Feed
• Chemical

Applications & Standard methods

• SOILS
  • TOTAL N: ISO 13878
  • TOTAL C – TOC: ISO 10694
• SOILS IMPROVERS AND GROWING MEDIA
  • TOTAL N: EN 13654-2
• SEDIMENTS
  • TOTAL N – TOTAL C: EPA Method 440.0
• SLUDGE, TREATED BIOWASTE, SOIL AND WASTE
• TOC: EN 15936
• PETROLEUM PRODUCTS AND LUBRICANTS
• TOTAL N – TOTAL C: ASTM Method D5291
• SOLID MINERAL FUELS
• TOTAL N – TOTAL C: ISO 29541
• SOLID BIOFUELS
• TOTAL N – TOTAL C: ISO16948
• SLUDGE, TREATED BIOWASTE AND SOIL
• TOTAL N: EN 16168
• COAL AND COKE
• TOTAL N – TOTAL C: ASTM Method D5373
• FERTILIZERS
• TOTAL N: AOAC 993.13
• CARBON BLACK
• TOTAL C: ASTM D 7633

Product Details

Specifications

• DURATION OF ANALYSIS: 4/5 minutes
• DETECTOR: N= TCD (Thermal Conductivity Detector) / C= NDIR Detector (Non Dispersive Infrared)
• SAMPLE WEIGHT: Up to 1g
• AUTOSAMPLER CAPACITY: up to 4 discs, 30 positions each (up to 117 samples)
• REPRODUCIBILITY (RSD): < 0.5% for EDTA standards approx. 100 mg
• RECOVERY: > 99.5%
• DETECTION RANGE C: ppm – 150 mgC
• DETECTION RANGE N: ppm – 200 mgN
• CARRIER GAS: Helium or Argon
• NITROGEN DETECTION LIMIT (ABSOLUTE VALUES): 0.001 mg N, with Helium / 0.01 mg N, with Argon
• CARBON DETECTION LIMIT (ABSOLUTE VALUES): 0.01 mgC
• COMBUSTION TEMPERATURE: 1030 °C / 1886°F
• CARRIER GAS (HE/AR): purity 99.999% (grade 5.0)
• OXYGEN (O2): purity 99.999% (grade 5.0)
• CARRIER GAS (HE/AR) PRESSURE: 2 bar
• OXYGEN (O2) PRESSURE: 2 bar
• POWER: 1400 W
• POWER SUPPLY: 230 V / 50 – 60 Hz
• WEIGHT: 54 kg / 119 lb
• DIMENSIONS (WXHXD): 655x510x410 mm (H 690 mm with autosampler) / 25.8×20.1×16.1 in (H 27.0 in with autosampler)

Software

• CONNECTIVITY: Cloud via LAN or Wi-Fi
• INTERFACES: USB; RS232
